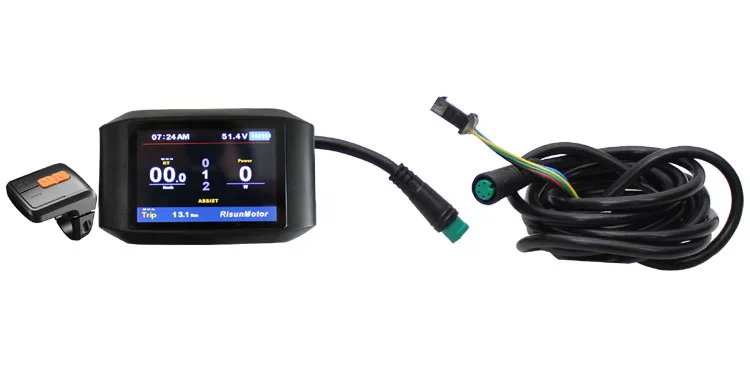

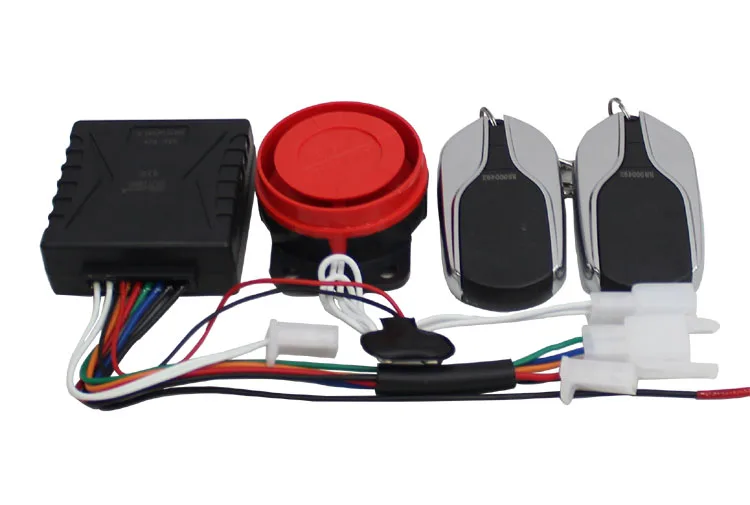

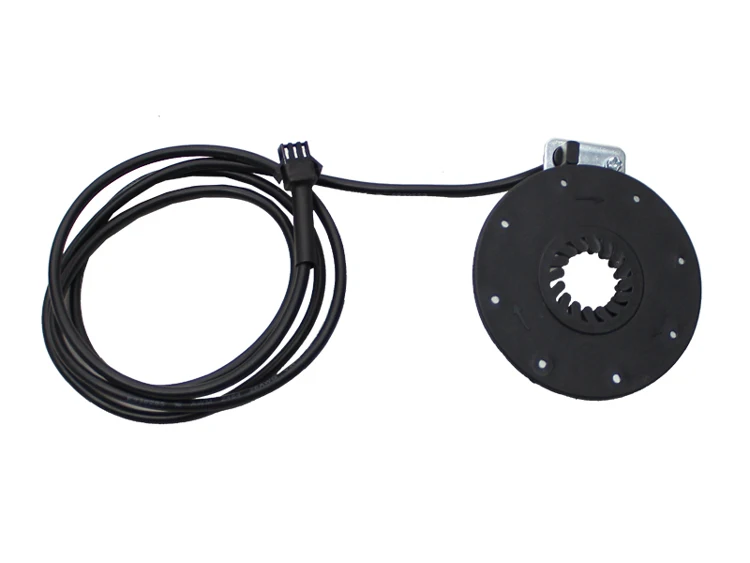

Conhismotor 48V 60V 72V 100A 3000-5000W Regenerative Programmable Controller Ebike DIY Kit With Alarm System+750C Display+PAS+Brakes Package Included ①.24 MOSFET 100A 48V, 60V, 72VUniversal3000-5000WIntelligentProgrammable Controller ②.36V, 48V, 60V, 72VFull colorTFT RSM-750cDisplay (with 5-level PAS, speed limit, speed display,Regenerative Functionwait for parameter setting) ③. TAE (HD-E530) Hydraulic Disc Brake, cut off power ④. Twist Throttle Drive ⑤. Pedelec Assistant Sensor/8 Magnetic PAS Drive ⑥. Alarm System|Remote start + Alarm + Motor Lock Carton Size: 44x22x16cm Gross Weight: 4kgs (with carton) Advantage: 1.Programmable Sine Wave Controller which support big current and smart match with each motor through self-learning, works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control, give you best pedal experience 2.Motor torque ripple is reduced to minimum through FOC, more smooth and comfortable 3.Universal Input Voltage Range: 48V/60V/72V 4.Work with or without display 5.Parameter setting via Mobile Phone App or Computer 6.All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection 7.Multi functions: Smart match with different motor, 5-speed level for throttle and PAS, Speed limit, reverse, anti-thief, Regenerative Braking, Electric Braking, Keyless start and etc. 8.Best heat sinking with thicker Heat sink Aluminium Plate 9.Anodized Aluminium Controller Case against scratch Technical Data: General Specification: 1. Power supply: 48V/60V/72V, MAX DC current: 100A, Max phase current: 250A 2. Rated Power: 48V 3300W/ 60V 4200W/ 72V 5000W 3. Peak Power: 48V 4800W/ 60V 6000W/ 72V 7200W 4. Low Voltage Protection: 40V/50V/60V 5. Brake: Low Voltage Brake 6. Alarm: Low Voltage Alarm 7. Rotor Position Detecting Method: Hall sensor 8. Mobile phone App or computer software can communicate with the controller to modify parameter 9. Size: 275x121x62mm 10. Net Weight: 2.05 kgs 11. Waterproof Grade: IP65 RisunMotor programmable sine-wave motor controller works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control. Our designed friendly interface of the programmable motor controller makes you set the parameters, conduct the tests and obtain the diagnostic info easily and quickly. 1. FOC-180°sinusoidal drive controller applied to BLDCM or PMSM. 2. It takes only 2-3 minutes for the motor to be well matched on its best electronic angle at the first time. 3. The motor torque ripple will be reduced to the minimum, so as to ensure electric vehicle to run without any noise and vibration, smoothly, and comfortably. 4. The precise current ring can provide accurate torque input to meet the requirement of large torque output during vehicle starting and climbing. 5. The controller enjoys high efficiency due to space vector converter control algorithm which can effectively reduce the temperature rise of controller and extend battery life mileage 6. Built-in various protection: locked-rotor protection, over-current protection, overload protection, over-temperature protection, speed protection, over-voltage protection, under-voltage protection and so on, effectively ensuring the safety of electronic control system and vehicle. 7. System status and fault intelligent management system can effectively monitor the current system operating mode external input state, the case of system failure, and the LED flashes at the same time to facilitate the diagnosis and maintenance. 8. Multi peripheral interfaces: reverse, cruise, anti-theft electronic brake, etc. 9. Parameter modifications and settings are available through Mobile phone via Bluetooth or computer via USB data cable 10. CAN BUS is optional to communicate with body instrument and BMS Warranty Item has one yearguarantee. Customer's wrong operation is not include in this warranty. Delivery Time Select the destination from the list of countries. We will try our best to ship parcel as soon as possible. If have a problem of delivery, please feel free to contact us. Exchanges & Return Policy Returning an item couldn't be easier. If you need to send item back, you have 14 days from the date you received your order to exchange or return. Sale item is not returnable. Please make sure your item is returned new and unused unless the item is faulty. Returns that do not meet our policy will not be accepted and will be sent back to the customer. Feedback We appreciate your business, If you are satisfy with our service, please leave us a positive feedback. Please email us before leaving any negative feedback or open any dispute. We understand the concerns and frustrations you might have, and will do our best to resolve any issues. window.adminAccountId=201623453;
